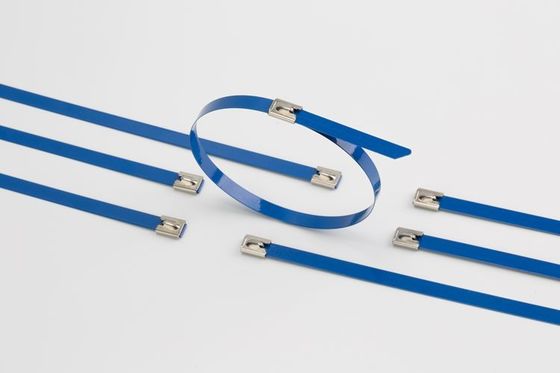

Isolasi Bola-kunci Epoxy dilapisi Stainless Steel Wire Ties - kabel ikatan
Deskripsi
Kabel Tangki Stainless Steel Dilapisi dirancang untuk mengamankan beberapa kabel elektronik atau kabel kabel ke sistem PV. Sambungan kabel tersedia dalam stainless steel tahan korosi yang sesuai untuk kondisi korosif yang ketat, yang memberikan metode bundling kabel tahan lama yang kuat.
Kabel Tangki Stainless Steel Dilapisi memiliki mekanisme penguncian diri yang unik sehingga memungkinkan pengoperasian dengan mudah dan cepat. Dasi dilapisi PVC penuh atau sebagian memberikan isolasi dan perlindungan kabel yang superior.
Informasi Teknis
Kawat Baja Terikat Epoxy dilapisi - Ties kabel terbuat dari Stainless Steel Grade 201.304 atau 316, Temp Lokasi: -80 ℃ sampai 150 ℃, warnanya bisa berbeda, seperti hitam, biru, hijau, putih, kuning, merah dll.
Mudah terbakar: Tahan api
Sifat Lainnya: tahan sinar UV, tidak beracun
| Bagian No. | Kira-kira. panjangnya.
mm (inci) | Kira-kira. lebar
mm (inci) | Ketebalan
mm | Maks. Bundle Dia.
mm (inci) | Min.loop
daya tarik
N (lbs) | Pcs / tas |
| JHCP-4.6 x 150 | 150 (5.9) | 4.6 (0.181) | 0.4 | 37 (1,46) | 600 (135) | 100 |
| JHCP-4,6 x 200 | 200 (7.87) | 50 (1,97) |
| JHCP-4,6 x 250 | 250 (9.84) | 63 (2.48) |
| JHCP-4,6 x 300 | 300 (11.8) | 76 (2,99) |
| JHCP-4,6 x 350 | 350 (13.78) | 89 (3.5) |
| JHCP-4,6 x 400 | 400 (15.75) | 102 (4.02) |
| JHCP-4.6 x 450 | 450 (17.72) | 115 (4.53) |
| JHCP-4,6 x 500 | 500 (19.69) | 128 (5.04) |
| JHCP-4.6 x 550 | 550 (21.65) | 141 (5.55) |
| JHCP-4,6 x 600 | 600 (23.62) | 154 (6.06) |
| JHCP-7,9 x 150 | 150 (5.9) | 7.9 (0.311) | 0.4 | 37 (1,46) | 800 (180) | 100 |
| JHCP-7,9 x 200 | 200 (7.87) | 50 (1,97) |
| JHCP-7,9 x 250 | 250 (9.84) | 63 (2.48) |
| JHCP-7,9 x 300 | 300 (11.8) | 76 (2,99) |
| JHCP-7,9 x 350 | 350 (13.78) | 89 (3.5) |
| JHCP-7,9 x 400 | 400 (15.75) | 102 (4.02) |
| JHCP-7,9 x 450 | 450 (17.72) | 115 (4.53) |
| JHCP-7,9 x 500 | 500 (19.69) | 128 (5.04) |
| JHCP-7,9 x 550 | 550 (21.65) | 141 (5.55) |
| JHCP-7,9 x 600 | 600 (23.62) | 154 (6.06) |
| JHCP-7,9 x 650 | 650 (25.59) | 167 (6.57) |
| JHCP-7,9 x 700 | 700 (27,56) | 180 (7.09) |
| JHCP-7,9 x 750 | 750 (29.53) | 191 (7.52) |
| JHCP-7,9 x 800 | 800 (31,5) | 193 (7.59) |
| JHCP-12 x 150 | 150 (5.9) | 12 (0.472) | 0.4 | 37 (1,46) | 1200 (270) | 100 |
| JHCP-12 x 200 | 200 (7.87) | 50 (1,97) |
| JHCP-12 x 250 | 250 (9.84) | 63 (2.48) |
| JHCP-12 x 300 | 300 (11.8) | 76 (2,99) |
| JHCP-12 x 350 | 350 (13.78) | 89 (3.5) |
| JHCP-12 x 400 | 400 (15.75) | 102 (4.02) |
| JHCP-12 x 450 | 450 (17.72) | 115 (4.53) |
| JHCP-12 x 500 | 500 (19.69) | 128 (5.04) |
| JHCP-12 x 550 | 550 (21.65) | 141 (5.55) |
| JHCP-12 x 600 | 600 (23.62) | 154 (6.06) |
| JHCP-12 x 650 | 650 (25.59) | 167 (6.57) |
| JHCP-12 x 700 | 700 (27,56) | 180 (7.09) |
| JHCP-15 x 200 | 200 (7.87) | 15 (0.59) | 0,55 | 50 (1,97) | 1500 (337) | 100 |
| JHCP-15 x 250 | 250 (9.84) | 63 (2.48) |
| JHCP-15 x 300 | 300 (11.8) | 76 (2,99) |
| JHCP-15 x 350 | 350 (13.78) | 89 (3.5) |
| JHCP-15 x 400 | 400 (15.75) | 102 (4.02) |
| JHCP-15 x 450 | 450 (17.72) | 115 (4.53) |
| JHCP-15 x 500 | 500 (19.69) | 128 (5.04) |
| JHCP-15 x 550 | 550 (21.65) | 141 (5.55) |
| JHCP-15 x 600 | 600 (23.62) | 154 (6.06) |
| JHCP-15 x 650 | 650 (25.59) | 167 (6.57) |
| JHCP-15 x 700 | 700 (27,56) | 180 (7.09) |
| JHCP-15 x 750 | 750 (29.53) | 191 (7.52) |
| JHCP-15 x 800 | 800 (31,5) | 193 (7.59) |
| JHCP-15 x 1000 | 1000 (39.37) | 206 (8.11) |
