Polyester Coated Self Locking Jenis Kabel Tee Stainless Steel Kunci Bola Stainless Steel Tie
Fitur produk

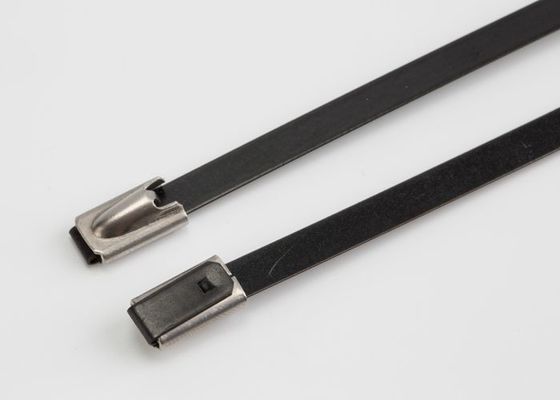

Kabel Tangki Stainless Steel Dilapisi dirancang untuk mengamankan beberapa kabel elektronik atau kabel kabel ke sistem PV. Sambungan kabel tersedia dalam stainless steel tahan korosi yang sesuai untuk kondisi korosif yang ketat, yang memberikan metode bundling kabel tahan lama yang kuat.
Kabel Tangki Stainless Steel Dilapisi memiliki mekanisme penguncian diri yang unik sehingga memungkinkan pengoperasian dengan mudah dan cepat. Dasi dilapisi PVC penuh atau sebagian memberikan isolasi dan perlindungan kabel yang superior.
Informasi Teknis
Bahan: Stainless Steel Grade 201.304 atau 316
Bekerja Temp .: -80 ℃ sampai 150 ℃
Deskripsi: Hitam (atau biru, merah, kuning, hijau) Band dengan Buckle metalik
Mudah terbakar: Tahan api
Sifat Lainnya: tahan sinar UV, tidak beracun
| Bagian No. | Kira-kira. panjangnya.
mm (inci) | Kira-kira. lebar
mm (inci) | Ketebalan
mm | Maks. Bundle Dia.
mm (inci) | Min.loop
daya tarik
N (lbs) | Pcs / tas |
| JHCP-4.6 x 150 | 150 (5.9) | 4.6 (0.181) | 0.4 | 37 (1,46) | 600 (135) | 100 |
| JHCP-4,6 x 200 | 200 (7.87) | 50 (1,97) |
| JHCP-4,6 x 250 | 250 (9.84) | 63 (2.48) |
| JHCP-4,6 x 300 | 300 (11.8) | 76 (2,99) |
| JHCP-4,6 x 350 | 350 (13.78) | 89 (3.5) |
| JHCP-4,6 x 400 | 400 (15.75) | 102 (4.02) |
| JHCP-4.6 x 450 | 450 (17.72) | 115 (4.53) |
| JHCP-4,6 x 500 | 500 (19.69) | 128 (5.04) |
| JHCP-4.6 x 550 | 550 (21.65) | 141 (5.55) |
| JHCP-4,6 x 600 | 600 (23.62) | 154 (6.06) |
| JHCP-7,9 x 150 | 150 (5.9) | 7.9 (0.311) | 0.4 | 37 (1,46) | 800 (180) | 100 |
| JHCP-7,9 x 200 | 200 (7.87) | 50 (1,97) |
| JHCP-7,9 x 250 | 250 (9.84) | 63 (2.48) |
| JHCP-7,9 x 300 | 300 (11.8) | 76 (2,99) |
| JHCP-7,9 x 350 | 350 (13.78) | 89 (3.5) |
| JHCP-7,9 x 400 | 400 (15.75) | 102 (4.02) |
| JHCP-7,9 x 450 | 450 (17.72) | 115 (4.53) |
| JHCP-7,9 x 500 | 500 (19.69) | 128 (5.04) |
| JHCP-7,9 x 550 | 550 (21.65) | 141 (5.55) |
| JHCP-7,9 x 600 | 600 (23.62) | 154 (6.06) |
| JHCP-7,9 x 650 | 650 (25.59) | 167 (6.57) |
| JHCP-7,9 x 700 | 700 (27,56) | 180 (7.09) |
| JHCP-7,9 x 750 | 750 (29.53) | 191 (7.52) |
| JHCP-7,9 x 800 | 800 (31,5) | 193 (7.59) |
| JHCP-12 x 150 | 150 (5.9) | 12 (0.472) | 0.4 | 37 (1,46) | 1200 (270) | 100 |
| JHCP-12 x 200 | 200 (7.87) | 50 (1,97) |
| JHCP-12 x 250 | 250 (9.84) | 63 (2.48) |
| JHCP-12 x 300 | 300 (11.8) | 76 (2,99) |
| JHCP-12 x 350 | 350 (13.78) | 89 (3.5) |
| JHCP-12 x 400 | 400 (15.75) | 102 (4.02) |
| JHCP-12 x 450 | 450 (17.72) | 115 (4.53) |
| JHCP-12 x 500 | 500 (19.69) | 128 (5.04) |
| JHCP-12 x 550 | 550 (21.65) | 141 (5.55) |
| JHCP-12 x 600 | 600 (23.62) | 154 (6.06) |
| JHCP-12 x 650 | 650 (25.59) | 167 (6.57) |
| JHCP-12 x 700 | 700 (27,56) | 180 (7.09) |
| JHCP-15 x 200 | 200 (7.87) | 15 (0.59) | 0,55 | 50 (1,97) | 1500 (337) | 100 |
| JHCP-15 x 250 | 250 (9.84) | 63 (2.48) |
| JHCP-15 x 300 | 300 (11.8) | 76 (2,99) |
| JHCP-15 x 350 | 350 (13.78) | 89 (3.5) |
| JHCP-15 x 400 | 400 (15.75) | 102 (4.02) |
| JHCP-15 x 450 | 450 (17.72) | 115 (4.53) |
| JHCP-15 x 500 | 500 (19.69) | 128 (5.04) |
| JHCP-15 x 550 | 550 (21.65) | 141 (5.55) |
| JHCP-15 x 600 | 600 (23.62) | 154 (6.06) |
| JHCP-15 x 650 | 650 (25.59) | 167 (6.57) |
| JHCP-15 x 700 | 700 (27,56) | 180 (7.09) |
| JHCP-15 x 750 | 750 (29.53) | 191 (7.52) |
| JHCP-15 x 800 | 800 (31,5) | 193 (7.59) |
| JHCP-15 x 1000 | 1000 (39.37) | 206 (8.11) |
